ANENG ST180 Clamp Meter Multimeter 4000 Counts Digital AC Current Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm Tester
Feature:
This Mini-size digital instrument performs AC/DC voltage, AC Current,
Resistance, Audible Continuity, Diode, Temperature measurements

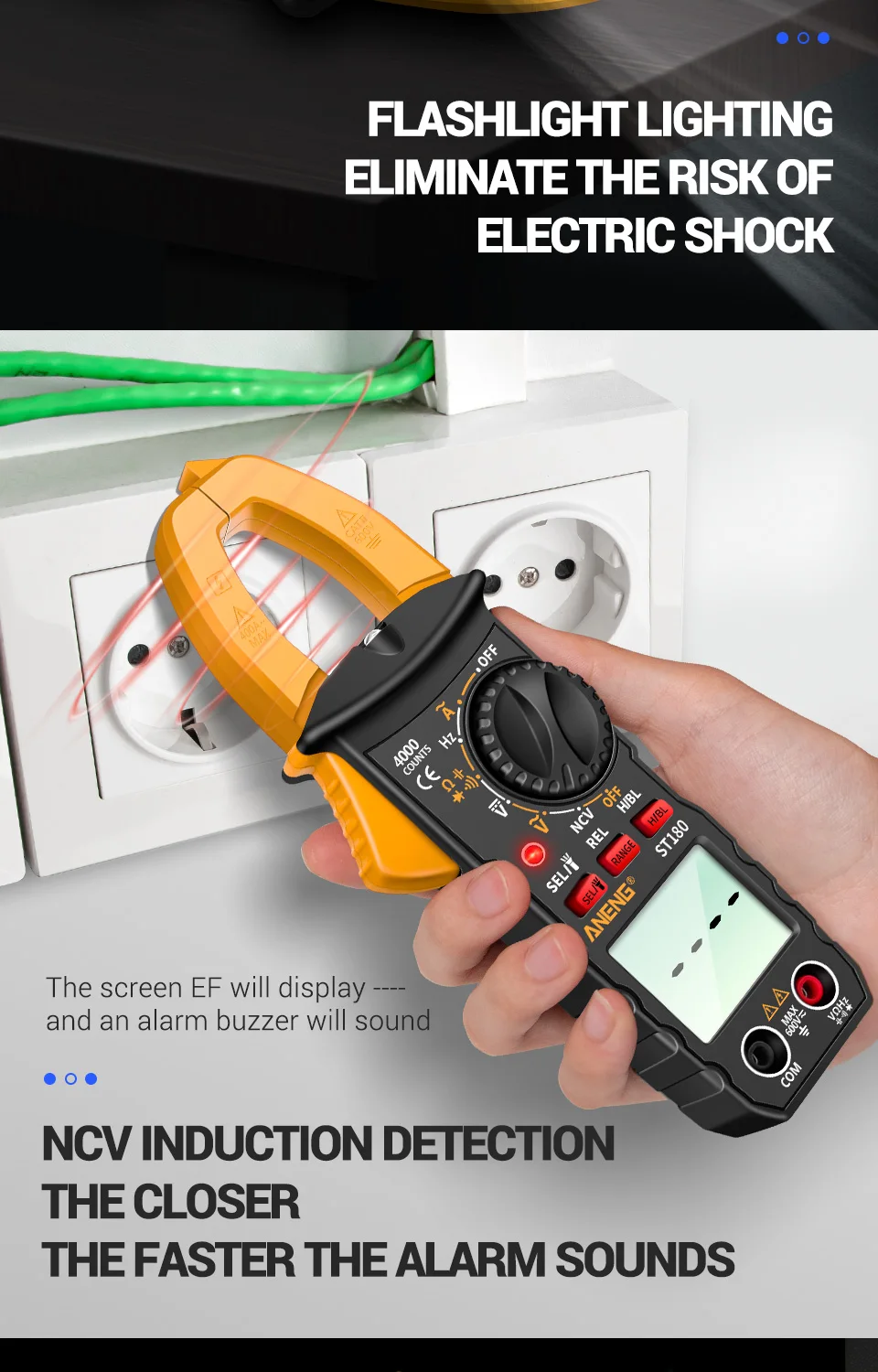

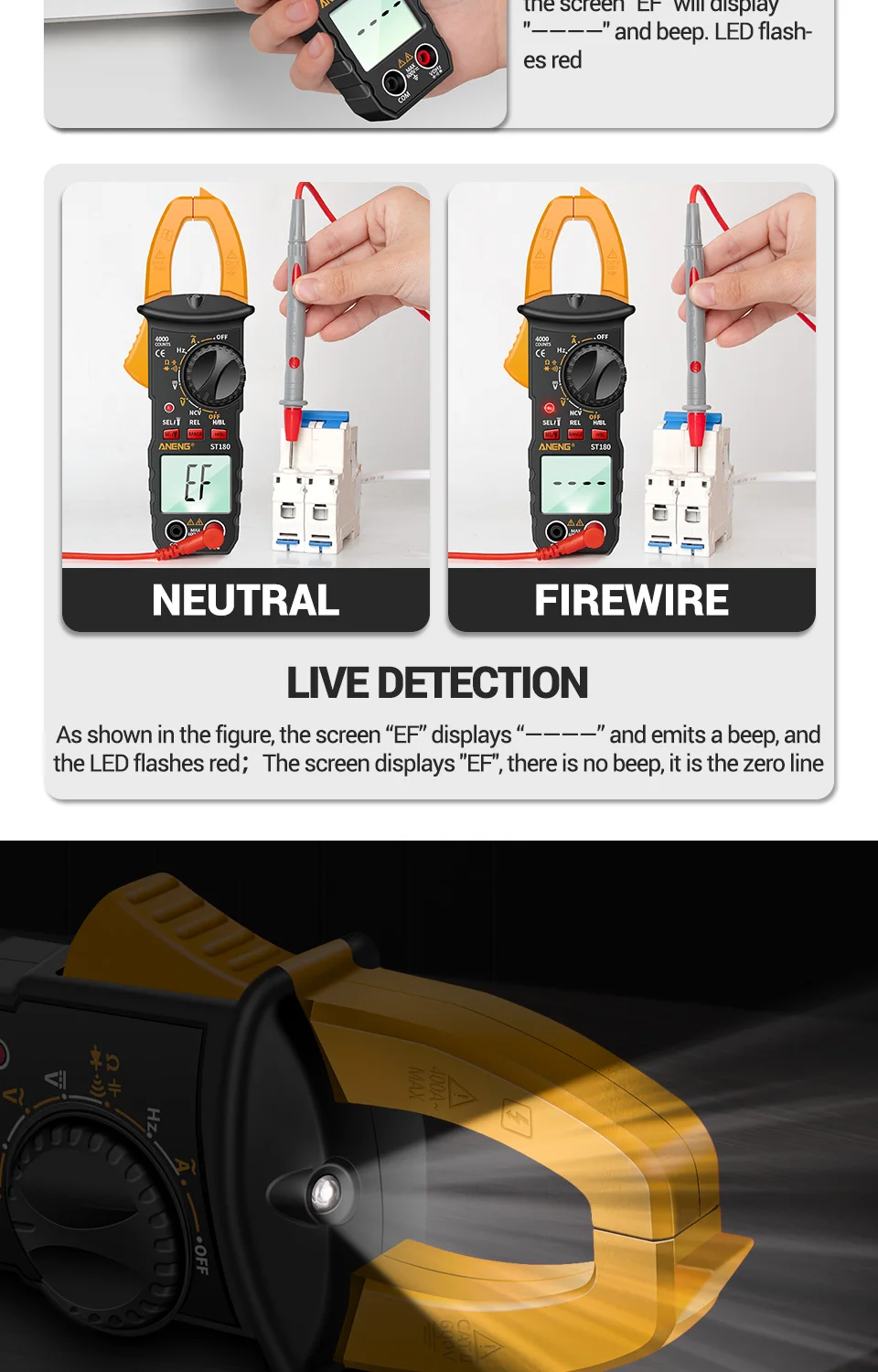

and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc.
It is an auto ranging DMM with AC current clamp meter function.
Specifications:

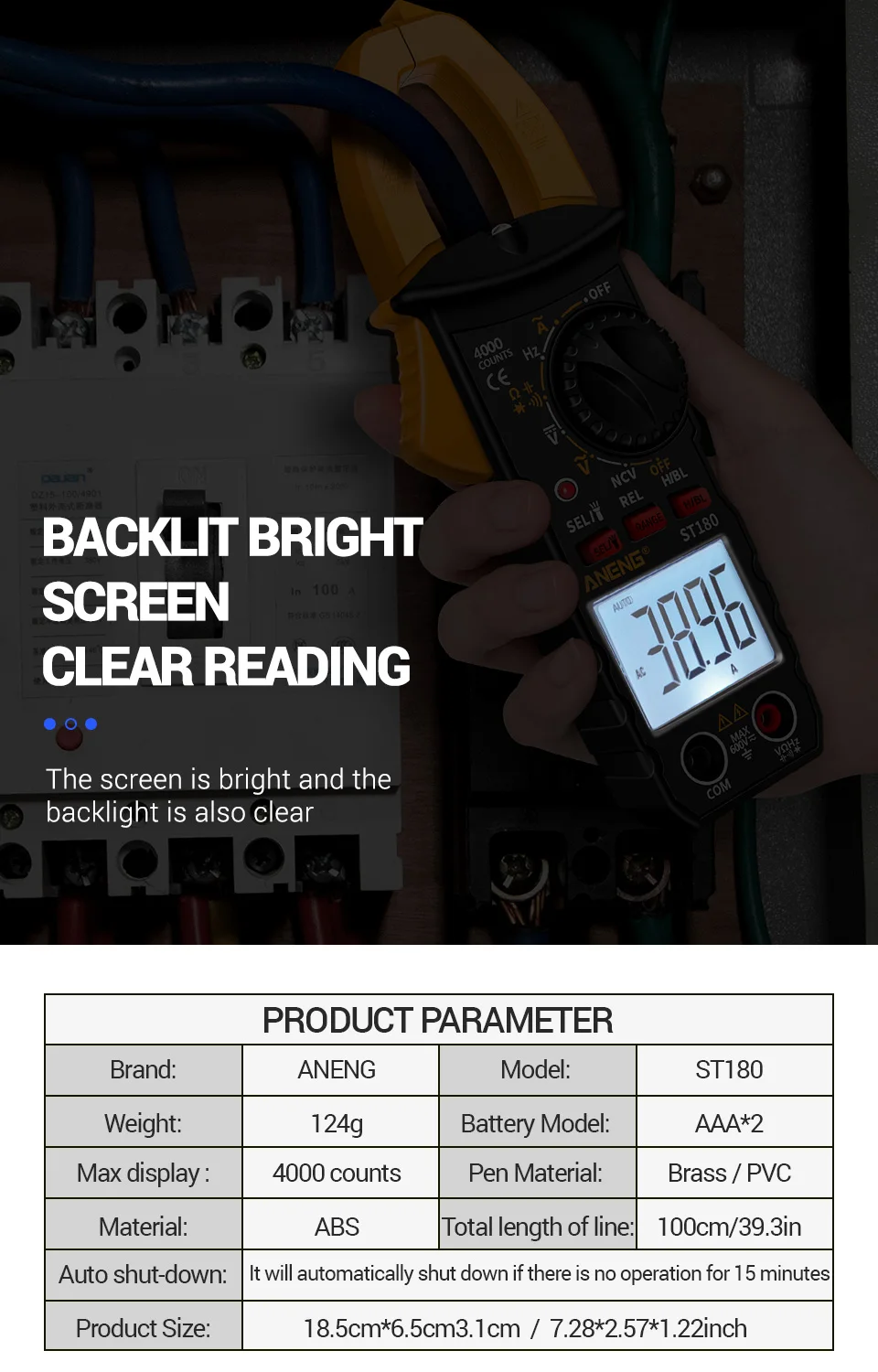

Model | ST180 | Display | 4000 counts |
| Range | Accuracy |
AC voltage | 4V/40V/400V/600V | ±(1.5%+3) |
DC voltage | 400mV | ±(1.5%+5) |
| 4V/40V/400V/600V | ±(1.0%+3) |

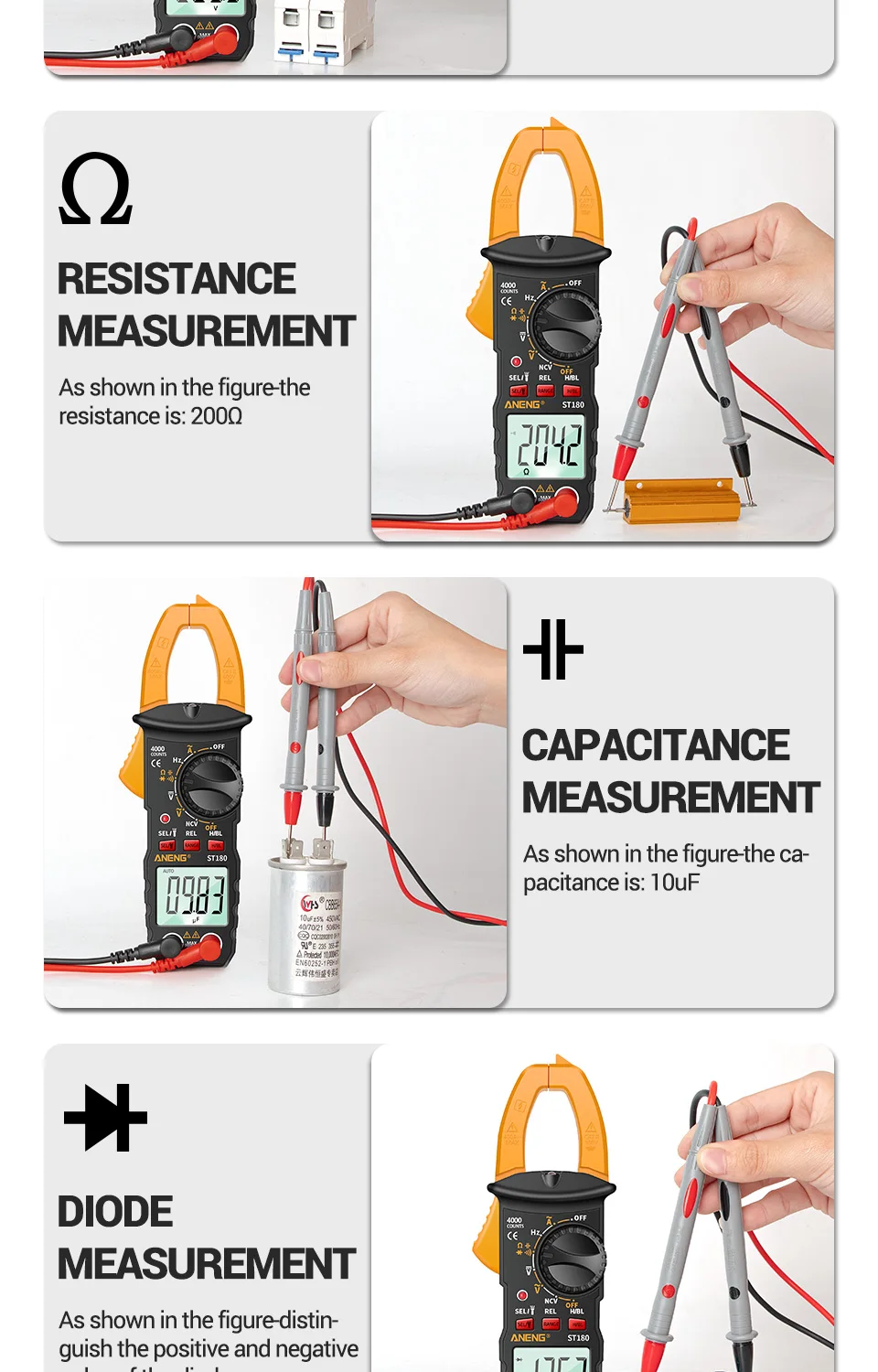

Resistance | 400/4k/40k/400k/4M omh | ±(1.2%+3) |
| 40M omh | ±(1.5%+5) |

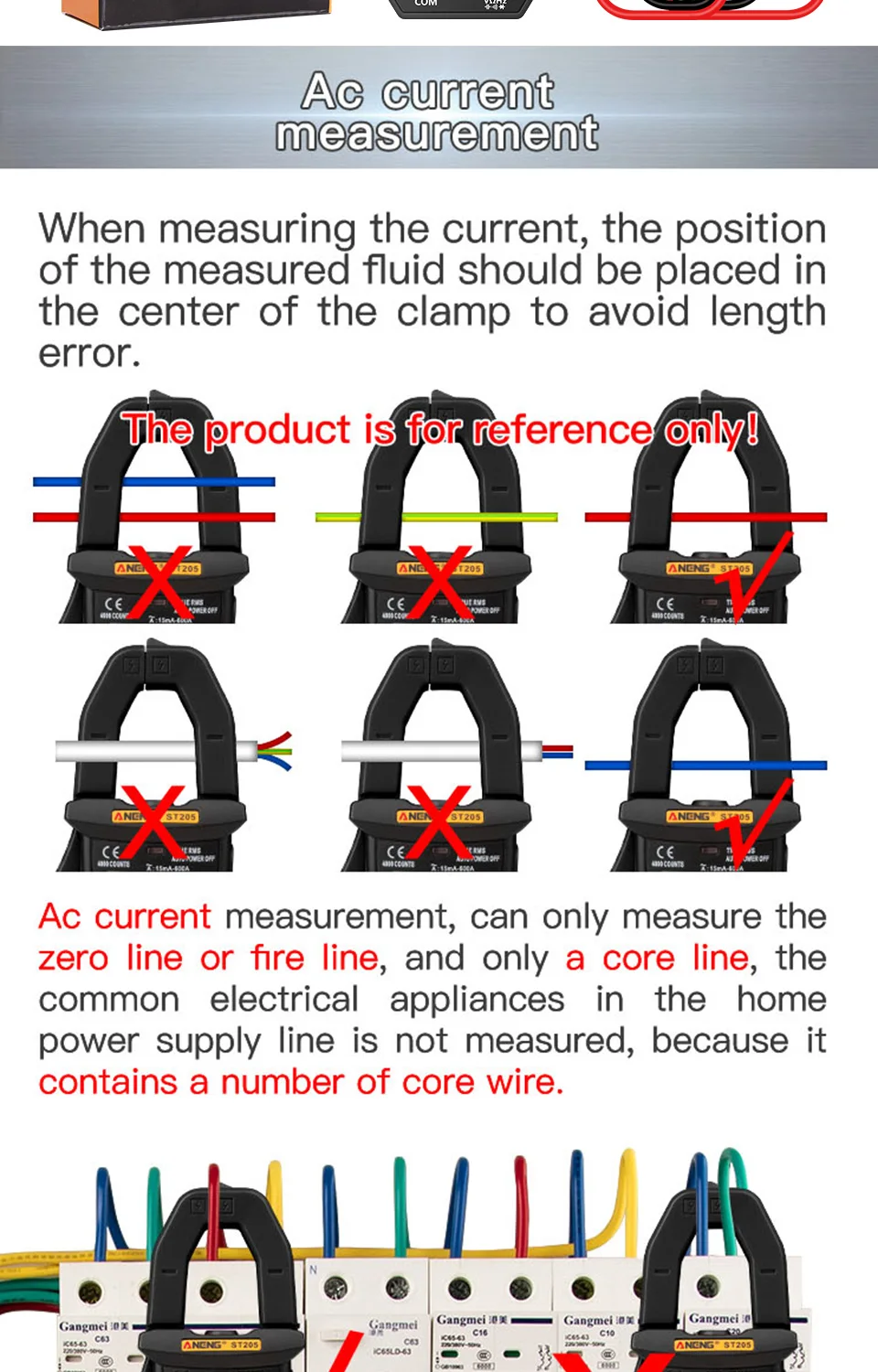

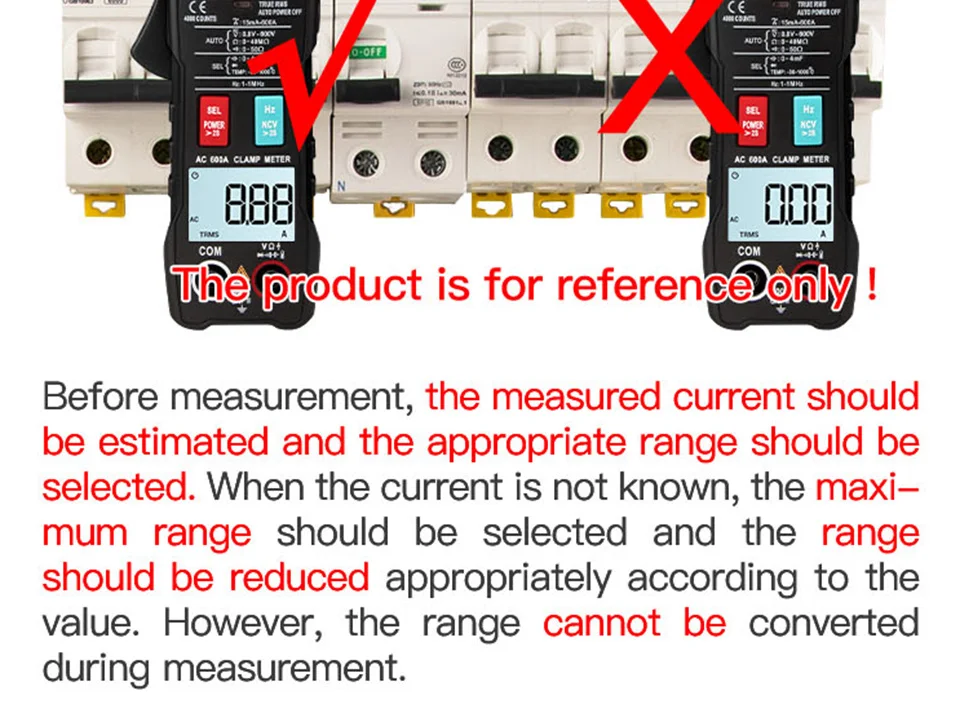

AC current | 40A/400A | ±(2.5%+3) |
Frequency | 10Hz~400kHz | ±(1.0%+5) |
| 400kHz~4MHz | ±(2.0%+5) |
Capacitance | 1nF~4uF | ±(2.5%+10) |
| 4uF~400uF | ±(4.0%+20) |
| 4mF | ±(5.0%+30) |
Package List:（Without Battery）

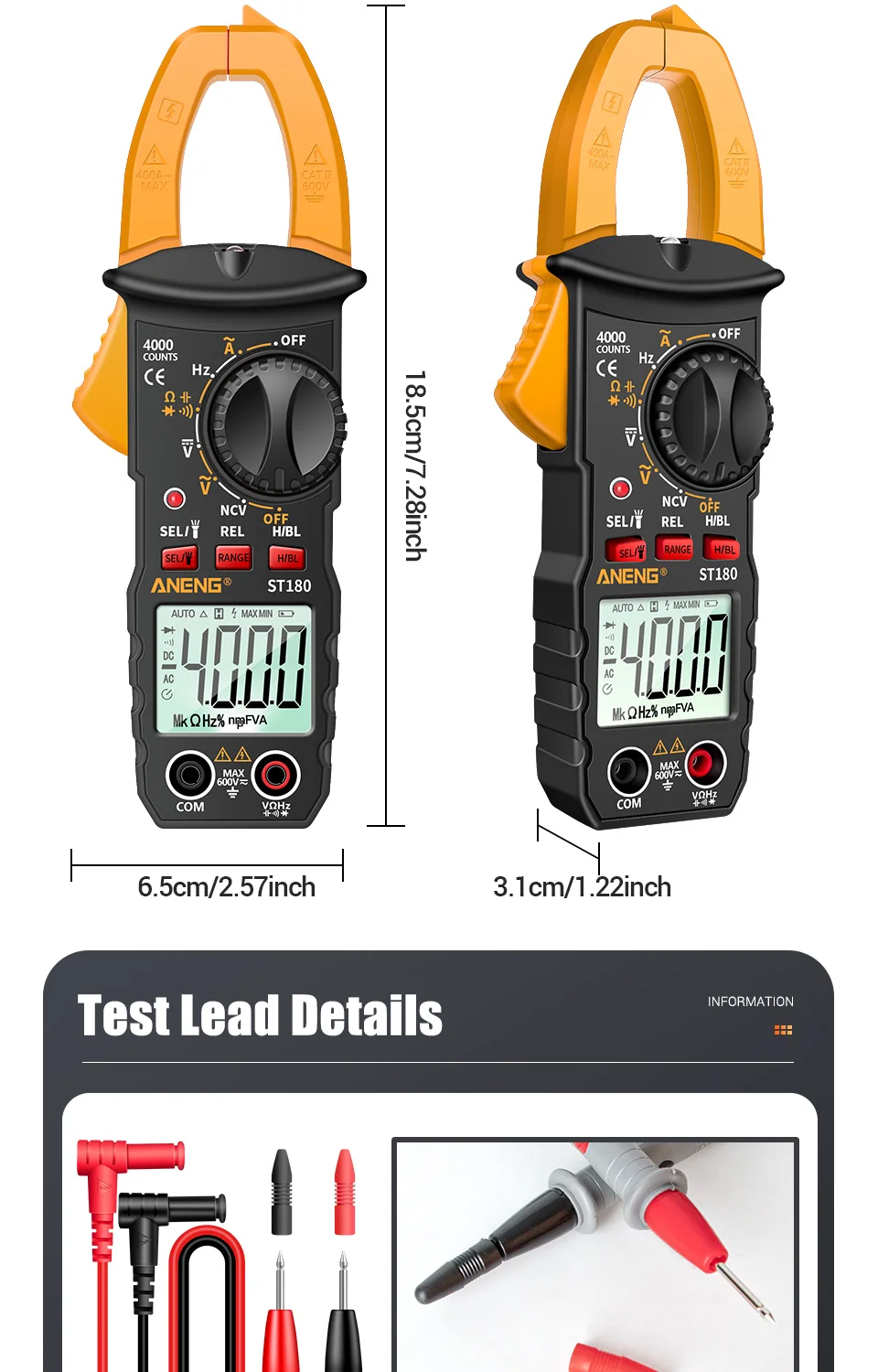

1 * ANENG ST180 Clamp Meter
1 * Test Probes
1 * User Manual
1 * Outer Packing Box
