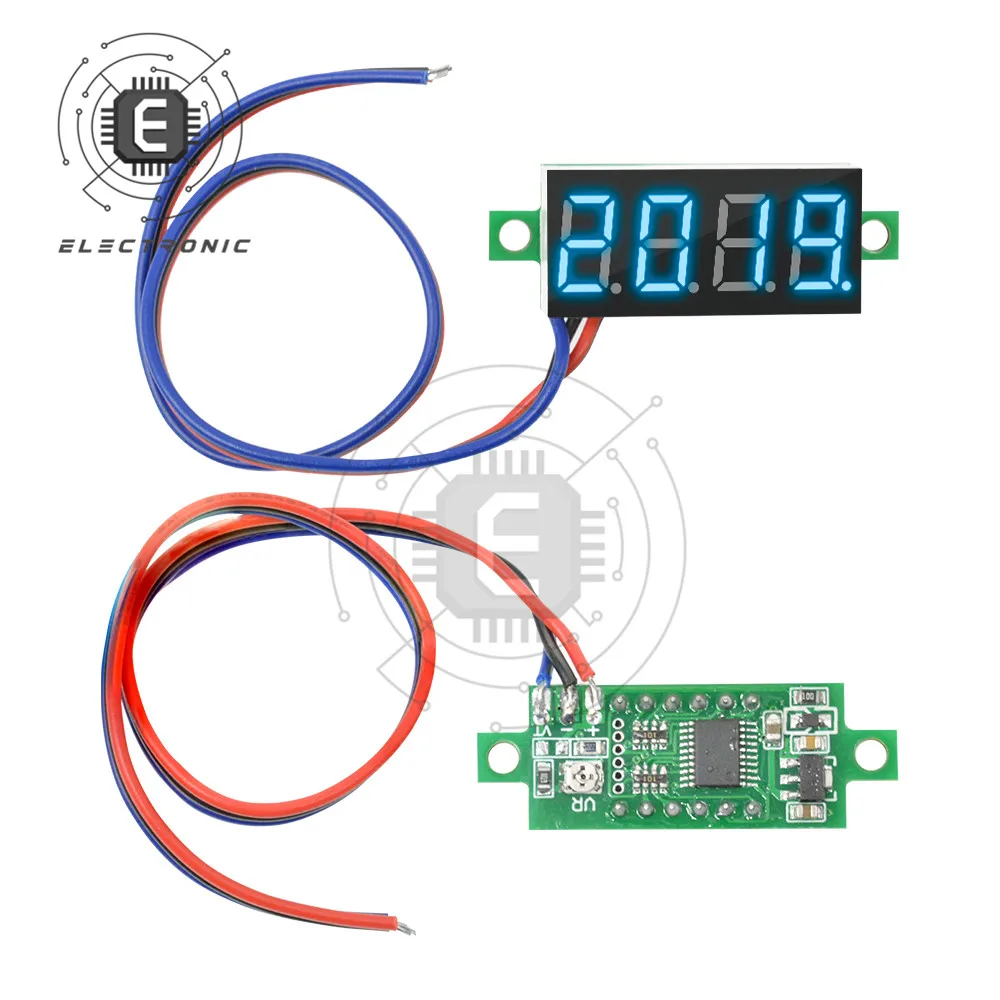

LCD Digital Display 0.36 Inch 3 Wire 4 Digits Voltmeter 0-100V Voltage Tester Measurement Instrument

Description:

-Measuring range: DC 0.000V-100.0V

-Display mode: 0.36 inch digital tube

-Power consumption of this unit:≤20MA

-Operating voltage: 4-30V (recommended range 5V-12V)

-Refresh rate: 3 times / sec

-Test accuracy: 0.3% (maximum error = range X0.003)

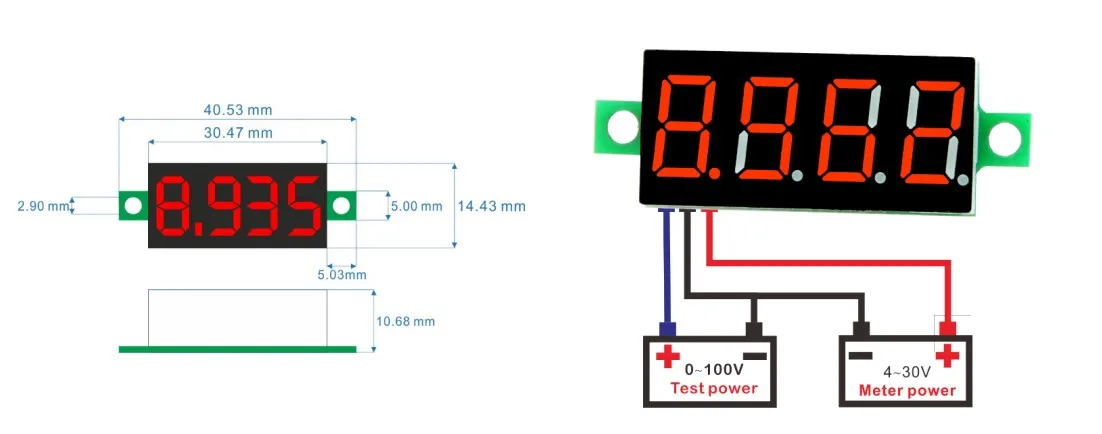

-Product size: 40.53×14.43×10.68mm

-Mounting aperture: 2.9mm

-Lead length: 20cm

-Lead definition: red - working power positive, black - common negative, blue - test power positive
